SMART TRAY METAL CLADDING  FAMILY

At Architectural Metalformers our team of experts will lead you through the entire process of design, manufacture and installation, ensuring complete peace of mind.

unspecified-18 copy 5.jpeg

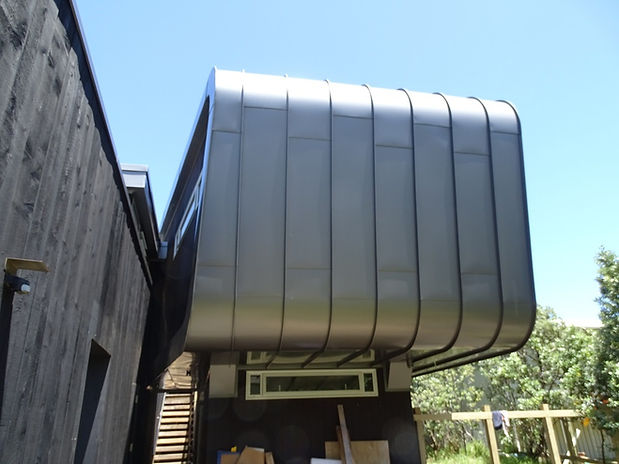

SMART TRAY STANDING SEAM WALL CLADDING

The Standing Seam Metal Wall Cladding system is one of the most flexible cladding systems available.  The end result is a clean minimalist finish that adds value to your property.

Façades are carefully wrapped in the selected metal to give a very contemporary look and feel to the structure.


The trays can be installed in the vertical or horizontal orientation and we are able to adjust tray widths to suit the project requirements.


Tray widths vary from 250-510mm with an upstand of 25mm

LockSeam Cladding.jpg

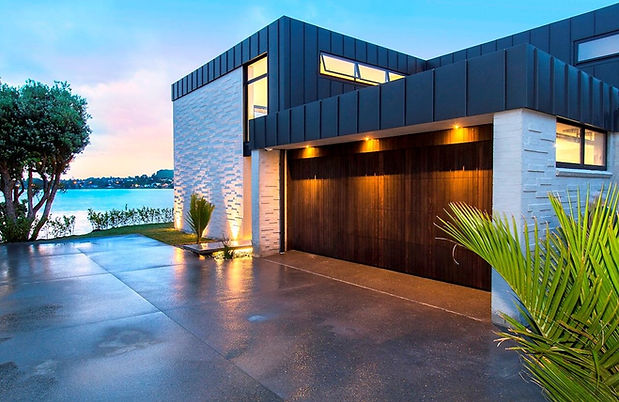

SMART TRAY STANDING SEAM LOCK SEAM CLADDING

After identifying that there was a gap in the market for a tray roof that fixes directly onto purlins which does not require a plywood substrate, Architectural Metalformers have launched a new addition to their claddingcollection. ​

Smart Tray Lock Seam cladding offers clients the look of Standing Seam wall cladding, but without the cost of plywood as it is installed directly onto purlins at 450mm centres.​



Features:​

  • This product is installed with the same robust flashing system and attention to detailing as Architectural Metalformers’ traditional roofing.

  • Available only in Aluminium and Steel.

Long Drive - LockSeam3.jpg

SMART TRAY STANDING SEAM BARCODE CLADDING

Barcode Wallcladding is the randomization of a standard panel system, by using multiple different sizes to create the look of a Barcode.



The pattern is usually achieved by working with your Architect or Designer to create a unique and bespoke pattern to suit the elements on your façade.



When choosing the pattern, special attention needs to be made to the width of the sheets required to ensure economical use of the coil and limit waste.



Available in all materials.

Crosson - Arney Rd Wall.jpg

SMART TRAY FLATLOCK WALL CLADDING

Flatlock panels offer an elegant cladding solution for mid to large format facades with the panels providing an enhanced longitudinal flat seam.

The system involves laying the panels on a compatible ply substrate that is fixed to the supporting structure (masonry or metal). To ensure the best possible quality and size in relation to the façade, the panels can be manufactured to the individual shape and size requirements.

This system requires pre-design and planning and you are encouraged to consult with the team at Architectural Metalformers to receive design advice.

Features:

  • The system uses an interlocking fold on all four sides and can be installed either horizontally or vertically. The pre-formed panels are installed with concealed clips.

Zinc  wall.jpg

SMART TRAY BATTEN CAP WALL CLADDING

The Batten Cap profile has clean minimalist trays. Façades are carefully clad in the selected metal to give a very contemporary look and feel to the structure.

Features:

  • Thicker 38x50mm Batten Cap Seam profile adds significant aesthetic value by introducing a traditional board and batten effect to the wall.

  • The enhanced shading effect on the façade is very attractive as lighting conditions change.

  • An additional feature of Standing Seam cladding is the ability to adjust the tray widths to suit the project specific requirements.

  • Trays can be installed in the vertical or horizontal orientation.


SMART TRAY SNAP LOCK
WALL CLADDING

This is the ideal product to use to create a point of difference on your project. This does however require pre-design and planning and you are advised to consult Architectural Metalformers early in your design process.

Features:

  • Suitable for most cladding projects.

  • With its unique narrower profile, it is particularly suited to accommodate curved façade designs with a formed width of 305mm.

  • Concave and convex shapes can be achieved.

unspecified-18 copy 2.jpeg

CUSTOM PANEL CLADDING

The Smart Tray 510 Standing Seam Custom Panel is ideal for a bespoke/custom-made cladding requirement. Please consult Architectural Metalformers early in your design process to ensure the best possible outcome.

Features:

  • This is the ideal product to use to create a point of difference and these projects typically involve a tapered, splayed or curved panel that requires pre-design and planning.

CLADDING QUICK GUIDE

  • Maximum length Architectural Metalformers have successfully installed panels to 10 metres.

  • Installation: Smart Tray metal cladding is only available through Architectural Metalformers specialist trained installers.

  • Plywood substrate: All cladding apart from Lock Seam and Interlocking Panel require a solid minimum 15mm treated plywood substrate.

  • Joinery: A multitude of joinery positions are available with our cladding systems, please contact our technical team at the start of design process.

  • Dissimilar materials: Care should be taken when selecting materials that are in direct contact with each other. Please contact us if you require more information.

  • Colours: Colour charts and/or samples are available upon request.

  • Materials available: All products with the exception of Lock Seam are available in copper, aluminium, zinc, steel and bronze. Lock Seam is available in only aluminium and steel.
